| Coad | 665918 | Type | 25 mm Travel Manual Linear Translation Stage | |
| Table Size(mm) | 90.0 x 90.0 | Travel(°) | - | |
| Travel（mm） | 25.00 | Axes | 1 | |
| Material | Aluminum Alloy 6061-T6 | Rotation Center Height | - | |
| Resolution | - | Displacement Stage Height | 23.2mm | |
| Center Threaded Hole Specifications | - | Platform Mounting Holes | M6 | |
| Thread Hole Spacing | 25mm | Bottom Positioning Hole Type | M6 | |
| Maximum Speed | - | Backlash | - | |
| Guide Mechanism | - | Drive Mechanism | - | |
| Horizontal Load | 42kg | Vertical Load | 4kg | |
| Motion Parallelism | ≤8μm | Motion Straightness | ≤3μm | |
| Motion Concentricity | - | Weight | 0.52kg | |
| Multi-Axis Assembly Method | 2xPositioning Pins + 4xScrews | Micrometer Head Minimum Scale | 10μm | |
| Motor Type | - | Surface Treatment | Black Anodizing after Grinding | |
| Repeatability | - | Unidirectional Positioning Accuracy | - | |
| Accessories Included | - | Driver Position | Left-Side Drive | |
| XY Orthogonality | - | Verticality of Z-Axis Motion | - | |
| Rotation Angle | - | End Runout | - | |
| Supplement | - | |||

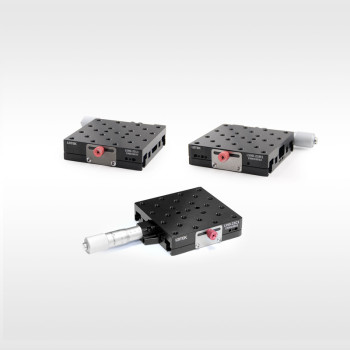

The LBTEK Manual Linear Translation Stage uses linear cross-roller bearing guides and is equipped with imported micrometer heads, capable of handling high loads. The 25 mm travel manual linear translation stage has a platform size of 90 mm × 90 mm, with M6 threaded holes. It is available in single-axis, XY, and XYZ configurations, and offers three types of drive options: end direct drive, left-side drive, and right-side drive. The micrometer head has a minimum graduation of 10 μm, and the linear displacement accuracy is within 3 μm.
Multiple single-axis manual linear translation stages from LBTEK can be freely combined into XY-axis and XYZ-axis stages. Two single-axis linear stages are assembled into an XY-axis linear stage using the provided M6 socket head screws. Additionally, an XY-axis linear stage can be combined with a Z-axis single-axis linear stage to form an XYZ-axis linear stage using the 90 mm Right-Angle Adapter Plate LS90VA.
In addition to the 25 mm travel manual linear translation stage, LBTEK also offers a 13 mm travel manual linear translation stage with a platform size of 65 mm × 65 mm and a travel range of 13 mm.
The LBTEK Single-Axis Linear Translation Stage is available in three drive types: end direct drive, left-side drive, and right-side drive. It features single-axis drive and includes a micrometer head with a minimum scale of 10 μm. The stage has a 25 mm travel range and a platform size of 90 mm × 90 mm, with M6 threaded holes. The bottom of the stage is equipped with four U-shaped mounting slots, allowing the stage to be fixed in place using M6 screws.
