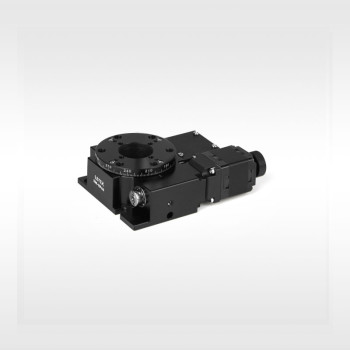

| Coad | 665915 | Type | Motorized Rotation Stage | |
| Table Size(mm) | 100.00 | Travel(°) | 360 | |
| Travel（mm） | - | Axes | - | |
| Material | Aluminum Alloy | Rotation Center Height | - | |
| Resolution | 0.001° per division | Displacement Stage Height | - | |
| Center Threaded Hole Specifications | 1xSM2 through-hole | Platform Mounting Holes | 6xM6 Threaded Hole | |
| Thread Hole Spacing | 75mm | Bottom Positioning Hole Type | M6 Countersunk Hole x4 | |
| Maximum Speed | 20°/s | Backlash | 0.05° | |
| Guide Mechanism | Combined Deep Groove Ball Bearing | Drive Mechanism | Worm Gear and Worm | |
| Horizontal Load | 15kgf | Vertical Load | - | |
| Motion Parallelism | 50μm | Motion Straightness | - | |
| Motion Concentricity | 30μm | Weight | - | |
| Multi-Axis Assembly Method | - | Micrometer Head Minimum Scale | - | |
| Motor Type | Five-Phase Stepper Motor | Surface Treatment | Black Anodizing | |
| Repeatability | ±0.01° | Unidirectional Positioning Accuracy | 0.05° | |
| Accessories Included | M6 Socket Head Cap Screws x4 | Driver Position | - | |
| XY Orthogonality | - | Verticality of Z-Axis Motion | - | |
| Rotation Angle | - | End Runout | - | |
| Supplement | - | |||
Traders City price 1355.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
