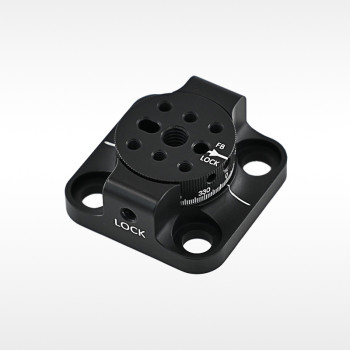

| Coad | 665912 | Type | Manual Rotation Stage | |
| Table Size(mm) | 68.50 | Travel(°) | 360 | |
| Travel（mm） | - | Axes | - | |
| Material | Aluminum Alloy 6061-T6 | Rotation Center Height | - | |
| Resolution | - | Displacement Stage Height | - | |
| Center Threaded Hole Specifications | SM1 | Platform Mounting Holes | M6x6 / M4x10 / M3x4 | |
| Thread Hole Spacing | - | Bottom Positioning Hole Type | M6 Threaded Hole x1 / M6 Countersunk Hole x4 | |
| Maximum Speed | - | Backlash | - | |
| Guide Mechanism | - | Drive Mechanism | - | |
| Horizontal Load | 12kg | Vertical Load | 2kg | |
| Motion Parallelism | ＜0.03mm | Motion Straightness | - | |
| Motion Concentricity | - | Weight | - | |
| Multi-Axis Assembly Method | - | Micrometer Head Minimum Scale | - | |
| Motor Type | - | Surface Treatment | Black Anodizing | |
| Repeatability | - | Unidirectional Positioning Accuracy | - | |
| Accessories Included | SM1R x1 | Driver Position | - | |
| XY Orthogonality | - | Verticality of Z-Axis Motion | - | |
| Rotation Angle | Continuous 360° rotation | End Runout | ＜0.04mm | |
| Supplement | Compatible with 30 mm coaxial systems Micrometer specifications: 10 main scale divisions correspond to a driving rotation adjustment range of ±5°; 50 divisions correspond to a precision of 60′/50 = 1.2′ (0.02°). | |||
Traders City price 237.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
