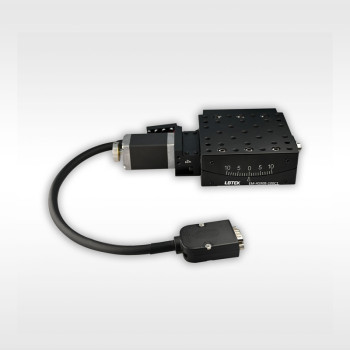

| Coad | 665899 | Type | Motorized Goniometer Stage | |
| Table Size(mm) | 90.0 x 90.0 | Travel(°) | ±8 | |
| Travel（mm） | - | Axes | - | |
| Material | Aluminum Alloy 6061-T6 | Rotation Center Height | 65.0 ± 0.2mm | |
| Resolution | 0.0004° per division | Displacement Stage Height | - | |
| Center Threaded Hole Specifications | - | Platform Mounting Holes | M6 Threaded Hole | |
| Thread Hole Spacing | 25mm | Bottom Positioning Hole Type | - | |
| Maximum Speed | 2.5°/s | Backlash | - | |
| Guide Mechanism | - | Drive Mechanism | - | |
| Horizontal Load | 5Kgf | Vertical Load | - | |
| Motion Parallelism | - | Motion Straightness | - | |
| Motion Concentricity | - | Weight | - | |
| Multi-Axis Assembly Method | - | Micrometer Head Minimum Scale | - | |
| Motor Type | Five-Phase Stepper Motor | Surface Treatment | Black Anodizing | |
| Repeatability | ±0.005° | Unidirectional Positioning Accuracy | - | |
| Accessories Included | 4xM6 Socket Head Cap Screws | Driver Position | - | |
| XY Orthogonality | - | Verticality of Z-Axis Motion | - | |
| Rotation Angle | - | End Runout | - | |
| Supplement | - | |||
Traders City price 1258.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
