| Code | 665888 | Type | Five-Axis Fiber Coupling Optical Element Mount | |
| Main Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing | |
| Center Hole Specification | SM05 Internal Thread | Applicable Optical Element Size | Diameter 12.5mm, Maximum Thickness 4mm | |
| Included Retaining Ring Specification/Quantity | SM05R/2 pieces |
Traders City price 43.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Maximum Clamping Thickness: 4 mm, Diameter 12.5 mm Optical Element
Included Retaining Ring: 1 SM05R Ring
Clear Aperture: 11.4 mm

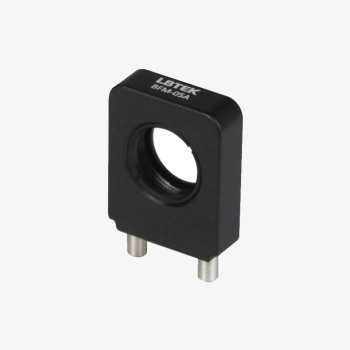

LBTEK 12.5 mm Diameter Mounting Base BFM-05A is designed for mounting Ø12.7 mm or Ø12.5 mm optical elements with a maximum mounting thickness of 4 mm. It features an optical element mounting step and includes 1 SM05R retaining ring for securing the optical element. The bottom has two Ø3.175 mm cylindrical pin holes for installation and positioning.
