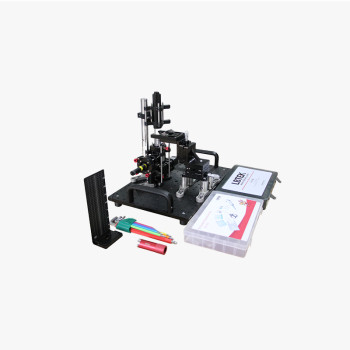

Basic Single-Beam Optical Tweezers System

Code	665884	Type	Basic Single-Beam Optical Tweezers System
Description	Used to Capture and Manipulate Particle Movement, with Real-Time Particle Motion Displayed Through a CMOS Camera	Dichroic Mirror + Objective Lens	650 nm Short-Wave Pass Dichroic Mirror, mounted in a coaxial cube; Objective Lens: 100x, oil immersion, NA 1.25, RMS threads
Light Source Module	Laser Module, Mounted on a 3D Adjustment Mount; 665 nm; Free-Space Output, with Adjustable Output Collimation; Output Optical Power > 30 mW; Operating Temperature Range: 10 ℃ - 30 ℃; Power Stability < 3%; Includes Power Adapter	Optical Path Alignment Tool	Used for Optical Path Height, Optical Path Leveling, and Optical Path Collimation Adjustment
Installation Service (Available for Separate Purchase)	On-Site Installation, Debugging, and Training by Engineer	Sample Preparation Tools	4 μm Silica Spheres, 4 μm Polystyrene Microspheres, Scissors, Tweezers, Glass Slides, Cover Slips, Double-Sided Tape, Pipette
Lighting Module	White Light LED; Maximum Output Power 3 W, with Power Adapter; 0-40 ℃; Includes Collimation and Focusing Elements	Motion Control	3-Axis Lateral Drive Linear Stage; Table Size: 65×65 mm; Travel: 13 mm; Straightness (Vertical, Horizontal): <3 μm; Parallelism: <15 μm; Minimum Micrometer Scale: 10 μm; Includes Sample Holder
Breadboard and Handle	Breadboard 300×450 mm, with Two Handles
