| Coad | 665838 | Type | Single-mode Adjustable Fiber Optic Attenuator | |
| Wavelength(nm) | 2050 ± 30 | Attenuation Range (dB) | 1.3 - 50.0 | |
| Connector Type | FC/PC | Fiber Model | Single-mode Fiber | |
| Operating Temperature | -5 - 70℃ | Storage Temperature | -40 - 85°C | |
| Dimensions | 26.0 x 18.0 x 8.0mm | Fiber Length | 1.0m | |
| Tube Diameter | 0.9mm | Return Loss | 45dB | |
| Insertion Loss | 1.3dB | Design Wavelength | 2050nm | |
| Maximum Power Handling | 300mW | Maximum Tension | 5N | |
| Extinction Ratio | - | |||

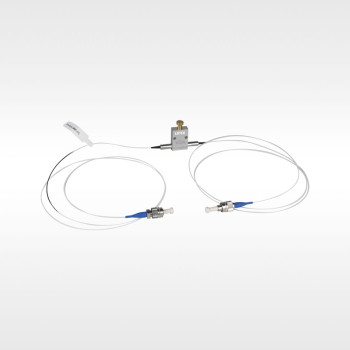

The LBTEK single-mode adjustable optical attenuator is a passive optical device designed to reduce optical signal power, preventing excessive input power that could damage receiving equipment. LBTEK offers single-mode adjustable attenuators for various wavelengths, each equipped with two lenses and an attenuating device. One lens collimates the input light from the fiber, while the other lens focuses and couples the collimated light back into the fiber. The attenuation is achieved by adjusting a screw knob that shifts the attenuating device between the two lenses, thereby reducing the light intensity to the desired output power level. Single-mode adjustable optical attenuators can be applied in optical communication systems, fiber testing instruments, and other fields. In addition to standard products, LBTEK also provides various customization services. For specific customization requirements, please contact us.
The LBTEK single-mode optical adjustable attenuator offers excellent environmental stability, high return loss, low insertion loss, and is an ideal choice for fiber lasers and testing instrument applications. The single-mode optical adjustable attenuator with an FC/PC connector is available in a wavelength range from 630 nm to 2050 nm, offering a wide attenuation range.
