| Code | 665821 | Type | Five-Axis Fiber Coupling Optical Element Mount | |
| Main Material | 6061-T6 Aluminum Alloy | Surface Finish | Black Anodized | |
| Compatible Optical Element Specifications | Φ12.7mm, Maximum Thickness 4mm | Mounting Method | Retaining Ring Mounting | |
| Rotation Angle | 360° | Graduation Accuracy | 2° per Division |
360° Adjustment Graduation Accuracy: 2° per Division Angle Numbers Every 20°
Compatible Optical Elements Ø12.7 mm, Maximum Thickness 4 mm
Mounting Method Retaining Ring Mounting (Includes one SM05R Retaining Ring)

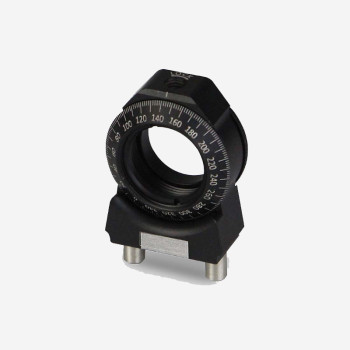

The LBTEK BFR05A is a rotating mount compatible with fiber coupler mounting bases. It is designed to hold Ø12.7 mm optical elements with a clear aperture of Ø11.4 mm. It features SM05 threads for mounting optical elements, Ø1/2-inch lens tubes, and other SM05-threaded accessories. The rotating mount can be used to install Ø12.7 mm polarizers and waveplates, and it has a white engraved area on the bottom for marking the installed optical components.
The BFR05A rotating mount has a graduation accuracy of 2°, providing 360° continuous rotation, coarse repeatable positioning, and fine adjustment. It also includes an M3 hex screw on the top for locking the mount, and two 3.175 mm positioning pins on the bottom for installation and alignment.
