| Code | 665820 | Type | Non-Magnetic Polarization-Maintaining Collimator | |
| Operating Wavelength | 795nm | Working Distance | 100mm | |
| Fiber Type | Nufern PM780-HP | Connector Type | FC/APC | |
| Jacket Diameter | 3mm | Fiber Length | 6m | |
| Maximum Insertion Loss | 1.5dB | Extinction Ratio | ≥20dB | |
| Output Spot Diameter | 2.0 ± 0.2mm | Return Loss | ≥40dB | |
| Packaging Size | φ8.0 × 25.5mm | Operating Temperature | -20 to +70 ℃ | |
| Operating Bandwidth | ±20nm | Beam Divergence Angle | ≤0.8 ° | |
| Packaging Material | PEEK |
Traders City price 442.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
FC/APC Connector Design Wavelength: 795 nm
The collimator uses non-magnetic polarization-maintaining materials.

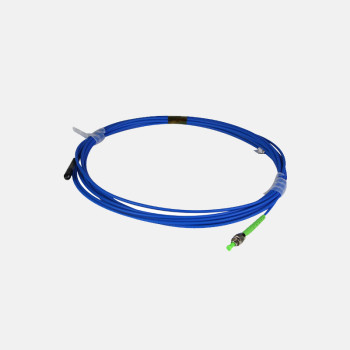

The LBTEK FC/APC Non-Magnetic Polarization-Maintaining Collimator consists of a connector, fiber, and collimation head. It efficiently collimates the light transmitted through the fiber into free space. The optical components of the product use achromatic doublet lenses, with an operating bandwidth of up to ±20 nm. The fiber section uses polarization-maintaining fiber to preserve the polarization state during transmission.
Due to the increased wavefront distortion caused by the doublet lens during transmission, it is recommended to use this collimator at the working distance position.
