| Code | 665813 | Type | Circular Clamping Arm | |
| Compatible Slide Holder Model | CSS | Overall Dimensions | 267.5 × 135.0 × 22.5mm | |
| Material | 6061-T6 Aluminum Alloy | Thread Hole Specifications / Quantity | M6 / 15 Pieces | |
| Surface Treatment | Black Anodizing | Weight | 0.36kg |
Traders City price 227.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
40 mm Dovetail Rail
Holds Ø110 mm Slide Holder
M6 Threaded Holes on the Surface for Installing Experimental Components

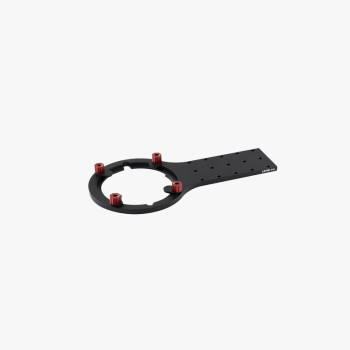

The LBTEK Circular Clamping Arm is used for mounting circular slide holders. To use, place the CSS into the Ø110 mm step and then tighten the 4 clamps to secure it. The bottom has a 40 mm dovetail rail, compatible with Ø38 mm dovetail connecting rods. The bottom also features M6 threaded holes with a 25 mm hole spacing, allowing for the installation of other experimental components.
