| Code | 665806 | Type | 66 mm Rail Bracket | |
| Height | 200mm | External Dimensions | 224.0 × 107.9 × 90.0mm | |
| Rail Dimensions | 66.0 × 66.0mm | Material | 6061-T6 Aluminum Alloy | |
| Countersunk Hole Specifications | M6 Countersunk Hole | Surface Treatment | Black Anodizing | |
| Weight | 1.085kg | Included Screw Specifications / Quantity |
M6×16 Cylinder Head Hexagon Socket Screws / 4 pieces |
Traders City price 344.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Empty Connecting Rod Mount, includes connecting rod collar
Compatible with Ø38 mm Dovetail Connecting Rod
Base with M6 Countersunk Mounting Holes

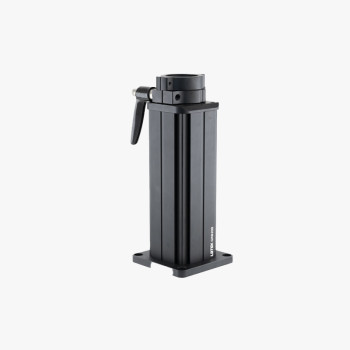

The LBTEK 66 mm Rail Bracket is designed for Ø38 mm dovetail connecting rods with 66 mm dovetail clamps and is compatible with our standard Ø38 mm stainless steel connecting rods. Each bracket includes a locking ring and alignment pin for stable and repeatable positioning. The base can be fixed to the optical platform or breadboard using M6 cylinder head hex screws through 4 countersunk holes. The purchase includes 4 M6×16 cylinder head hex screws.
