| Code | 665801 | Type | Top Breadboard | |
| Breadboard Dimensions | 350.0 x 275.0 × 12.7mm |
Material | 6061-T6 Aluminum Alloy | |
| Surface Treatment | Black Anodizing | Weight | 3.252kg | |
| Included Screw Specifications / Quantity | M4 × 12 Cylinder Head Hexagon Socket Screws / 4 pieces |
Bottom Breadboard with a male dovetail block for connecting to the microscope main stand.
The surface features M6 threaded through-holes, with a hole spacing of 25 mm.
Includes 4 foot blocks to support the breadboard.

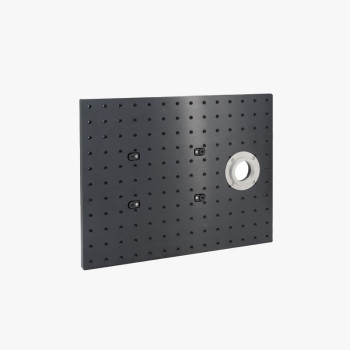

The LBTEK top breadboard is black anodized, allowing system developers to build custom wide-field observation setups and transmitted light paths on top of an upright microscope. Each breadboard has a Ø38.1 mm through-hole, with the center of the hole located on the male dovetail block. This dovetail block can directly connect the breadboard to the transmitted light arm of the microscope main stand or be used to stack the breadboard on top of the transmitted light module. Near the Ø38.1 mm through-hole, there are 8 M3 threaded holes for 30 mm and 60 mm coaxial systems. The purchase includes 4 M4×12 cylinder head hexagon socket screws.
