| Code | 665798 | Type | Microscope Main Stand | |
| Rail Height | 400mm | Rail Specifications | 95.0 × 95.0mm | |
| Material | 6061-T6 Aluminum Alloy | Countersunk Hole Specifications | M6 Countersunk Hole | |
| Surface Treatment | Black Anodizing | Weight | 6.989kg | |
| Included Screw Specifications / Quantity |
M6×16 Cylinder Head Hexagon Socket Screws / 14 pieces |
The Microscope Main Stand with a 95 mm wide linear dovetail mounting surface, which allows for flexible installation of microscope modules.
Equipped with a female dovetail slot and an M6 countersunk hole for mounting.

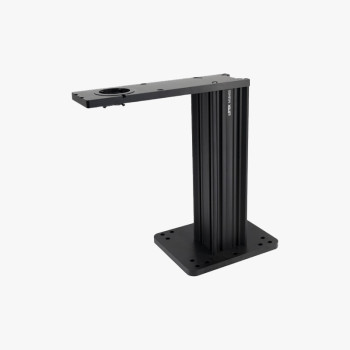

The LBTEK microscope main stand with an illumination arm is based on a 95 mm optical construction guide rail, providing long-term stable support and excellent vibration damping. The top of the illumination arm features a female dovetail slot, located 196.5 mm from the edge of the guide rail, offering a large working space below. The bottom has four M3 threaded holes for a 60 mm coaxial system. Additionally, there is a magnetic-coupling bellows that creates a light-tight optical path for the objective lens mount. The length of the bellows is adjustable from 20 mm to 100 mm. The main stand includes a base with M6 countersunk holes, which can be fixed to an optical platform or breadboard using the provided M6 cylinder head hex screws.
