| Code | 665772 | Type | Vortex Light Interference System | |
| Description | Realize the interference of vortex light with spherical waves/plane waves | Light Source Module | Laser Module, 520 nm +/- 5 nm, Output Optical Power <10 mW, with Power Adapter; Adjustable Aperture Size; Polarizer, Extinction Ratio >1000:1, Anti Reflection Coating 400-700 nm; Rotatable Mirror Mount to Change the Polarizer's Transmission Axis Direction | |
| Optical Path Alignment Tool | Used for Optical Path Height, Optical Path Leveling, and Optical Path Collimation Adjustment | Interferometer Module | Non-Polarizing Beam Splitter Cube with an Anti-Reflection Coating of 400-700 nm, Mounted in a Coaxial Cube; Metal Silver-Coated Mirror with a Silica Protective Layer; Mirror Mount with Adjustable Pitch | |
| Vortex Light Conversion Module | 1/4 Wave Plate, Design Wavelength 520 nm; Vortex Wave Plate, Design Wavelength 520 nm, m=1; Differential Rotating Mirror Mount Provides Precision Adjustment for the 1/4 Wave Plate; Displacement Adjustment Mount Supports the Vortex Wave Plate's Optical Axis | Spherical Wave Conversion Module | Plano-Convex Lens, f = 50 mm, Diameter 25.4 mm, Anti-Reflection Coating 400-700 nm, Mounted in a Lens Tube; Displacement Adjustment Mount Provides Displacement in Both XY Directions | |
| Breadboard Assembly | Size 30 cm × 60 cm, with Breadboard Handle |
Traders City price 4398.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Laser Wavelength: 520 nm
Mounted on a 30 x 60 cm Breadboard
Mach-Zehnder Interference Setup
Spherical Wave + Vortex Light Interference
Plane Wave + Vortex Light Interference
Adjustable Laser Intensity
Adjustable Laser Polarization
Black and White CMOS Camera

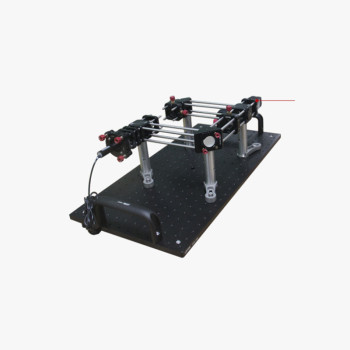

The LBTEK Vortex Beam Interference System is shipped as components, including the breadboard assembly, light source module, interferometer module, vortex light conversion module, CMOS camera module, optical path alignment tool, and detailed product manual. Users can install and use the system based on the installation steps in our product manual.
