| Code | 665770 | Type | 5-Axis Fiber Couplers and Accessories | |
| Dimensions | 42mm × 38mm × 6.5mm | Material | 303 Stainless Steel | |
| Surface Finish | Sandblasted & Passivated | Countersink Hole Specification | M4 | |
| Weight | 0.05kg | Included Accessories | M4 × 10mm Socket Head Cap Screws × 2，M2 × 6mm Socket Head Cap Screws × 4，SM1R Retaining Ring × 1 | |
| Coaxial System Compatible | No | Threaded Hole Specification | SM1 / M2 |
Traders City price 383.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Material
303 Stainless Steel
Surface Finish
Sandblasted & Passivated
Included Accessory
1 × SM1R Retaining Ring
M2 Threaded Holes
For mounting fiber couplers
Description

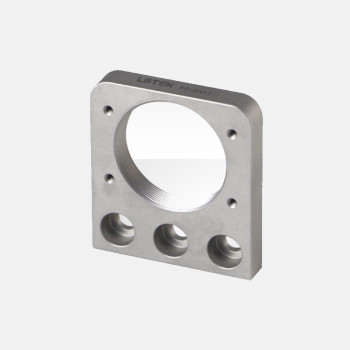

The LBTEK Fiber Coupler Wall Plate can be mounted to the side of a fiber coupler base using two included M4 screws. The four M2 threaded holes are designed for connecting to fiber couplers. The plate also features an SM1 internal thread, compatible with our Ø25.4 mm lens tubes and other SM1-threaded components. One SM1 retaining ring is included with the purchase.
