| Code | 665751 | Type | Reflective Collimator | |
| Optical Element Material | Aluminum Substrate | Clear Aperture | 23.5mm | |
| Operating Wavelength Range |
250nm – 450nm |
Coating | UV-Enhanced Aluminum | |
| Reflectivity |
>90% (250nm – 450nm) |
Beam Divergence Angle | ≤0.02° | |
| Beam Deflection Angle |
≤10mrad |
Reflective Focal Length | 50.8mm | |
| Connector Type |
FC/PC |
Numerical Aperture (NA) | 0.212 | |
| Theoretical Spot Diameter |
13.2mm |
Housing External Thread | M28×0.8 |
Traders City price 968.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Operating Wavelength: 250 nm – 450 nm
Output Beam Diameter: Multiple options available
Fiber Connector Options: FC/PC, FC/APC, SMA

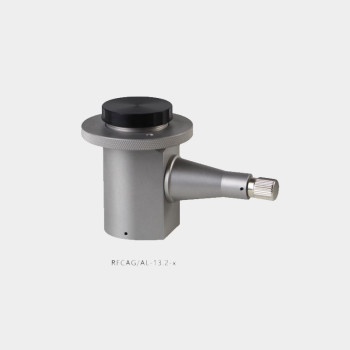

The LBTEK Reflective Fiber Collimator is designed for operation within the 250–450 nm ultraviolet range. It offers a selection of output beam diameters to accommodate various application requirements and supports fibers terminated with FC/PC, FC/APC, or SMA connectors.
As illustrated in the assembly diagram, the LBTEK reflective collimator can be mounted on a variety of mirror mounts, enabling three-axis angular adjustment of the output free-space beam for precise optical alignment and beam steering.
