| Code | 665736 | Type | Reflective Collimator | |
| Optical Element Material | Aluminum Substrate | Clear Aperture | 16.5mm | |
| Operating Wavelength Range |
450nm – 20.0µm |
Coating | Protected Silver | |
| Reflectivity |
>96% (450nm – 20µm) |
Beam Divergence Angle | ≤0.02° | |
| Reflective Focal Length |
33mm |
Connector Type | SMA | |
| Numerical Aperture (NA) |
0.225 |
Theoretical Spot Diameter | 8.6mm | |
| Housing External Thread |
M20×0.8 |
Traders City price 793.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Operating Wavelength: 450 nm – 20.0 µm
Output Beam Diameter: Multiple options available
Fiber Connector Options: FC/PC, FC/APC, SMA

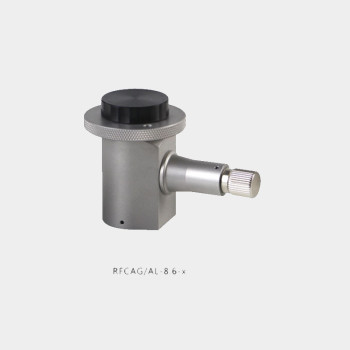

The LBTEK Reflective Fiber Collimator is designed for use across a wide spectral range from 450 nm to 20 µm. It offers multiple selectable output beam diameters to suit different application needs and is compatible with fibers terminated with FC/PC, FC/APC, or SMA connectors.
As shown in the assembly diagram, the LBTEK reflective collimator can be integrated with various mirror mounts, enabling three-axis angular adjustment of the output free-space beam for optimal alignment and beam steering.
