| Code | 665727 | Type | Electric Actuator | |
| Mounting Method | M6×0.25 Threaded Mounting | Motor Type | 2-Phase 2-Pole Stepper Motor | |
| Travel | 6mm | Resolution | 0.5nm | |
| Bidirectional Repeatability | < 5µm | Backlash | < 15µm | |
| Return to Zero Position Accuracy | < 5µm | Storage Temperature | -20 - 80℃ | |
| Dimensions (L&W) | 112.9 × 20.0mm | Connector Type | DB 15 | |
| Maximum Acceleration |
10mm/s² |
Maximum Thrust |
40 N |
|
| Maximum Speed | 2.0 mm/s | Minimum Repeatable Motion Increment | 2μm | |
| Cable Length |
1.0m |
Operating Temperature |
5 - 40℃ |
Non-rotating Drive Head
Bidirectional Two-Stage Stepper Electric Actuator: 113 mm (retracted size)
Provides Threaded and Optical Wall Mounting Options

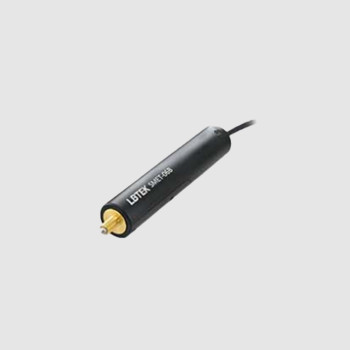

The SMET-06x series actuator provided by LBTEK has a retracted overall length of 113 mm, offering smooth and precise linear motion control. The actuator is driven by a miniature two-phase bipolar stepper motor, with a maximum stepper speed of 2 mm/s. The actuator eliminates the rotating contact structure, with a non-rotating ball head on the top, reducing wear and friction and enhancing the smoothness of movement. This series of actuators offers two mounting options: M6×0.25 threaded and Ø8.6 mm optical wall mounting.
Note: The electric actuator does not support hot-swapping. Hot-swapping while powered may damage the motor.
