| Code | 665719 | Type | 6-Position Motorized Filter Wheel | |
| Category | Host | Applicable Optical Component Diameter | Ø25.4mm | |
| Power Supply Requirements | 12V DC | Aperture Position | A & B (12 o'clock and 7 o'clock) | |
| Response Time | Adjacent Position < 1 s | Hole Position Alignment Accuracy | ±1° | |
| Dimensions | 165.0 × 33.0 × 127.0mm | Number of Filter Slots | 6 | |
| Trigger Input/Output | M8 Interface | Applicable Optical Component Thickness | ≤0.25" (6.35 mm) | |
| Clear Aperture |
0.90" (22.86 mm) |
Communication Control |
USB - Type-C |
|
| Weight | 0.75kg |

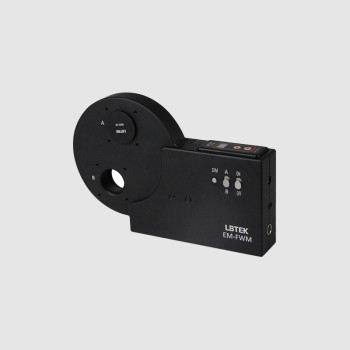

6-Position Motorized Filter Wheel for Ø1 inch (Ø25.4 mm) Optical Components
Maximum Installable Optical Component Thickness: 6.35 mm
Available versions with pre-installed ND filters (EM-FWM6C) or without pre-installed filters (EM-FWM6)
Includes 2 SM1-C2 SM1 Dust Caps and 6 SM1R Retaining Rings
The EM-FWM series products can be manually selected using the buttons on the display panel or remotely switched via the Type-C interface in communication with a computer. It also supports external TTL equivalent-level output triggering. The display screen shows the currently selected filter, and the brightness of the screen can be adjusted using the DIM button on the filter wheel. The two aperture openings on the filter wheel can be switched between A/B using the button controls on the housing to adapt to different optical paths. The bottom features two M6 and one M4 threaded holes for connecting rods, allowing installation onto an optical platform. The EM-FWM filter wheel series is flexible in installation and easy to operate, making it ideal for instrument systems and laboratory applications. LBTEK provides control software for the EM-FWM filter wheel, as well as SDK manuals for LabVIEW and Visual C++. For related operation instructions and example codes, please refer to the software tab.
The EM-FWM6C is a motorized filter wheel with pre-installed neutral density filters. If needed, LBTEK can also provide customized filter component pre-installation services for customers. For customization requests, please contact LBTEK technical support.
