| Code | 665713 | Type | Motorized Filter Mount | |
| Unidirectional Angular Resolution | 0.015° | Step Angle | 1.8° | |
| Applicable Scenarios | 30 mm Coaxial System | Maximum Holding Torque | 1.5 kgf.cm | |
| Maximum Starting Frequency | ＞900 PPS | Maximum Pullout Torque | 0.45 kgf.cm | |
| Material | Aluminum Alloy | Pulses per Revolution | 24153.6 | |
| Voltage | 5V-DC | Motor Interface | YC8-4P | |
| Motor Type | 4-Wire 2-Phase Micro Stepper Motor | Phase Inductance | 14.3 mH/phase | |
| Phase Current | 128 mA / phase | Phase Resistance | 39 ± 7Ω / phase | |
| Surface Treatment | Black Anodizing | Applicable Optical Components | Continuous Neutral Density Filter |
The motor uses a full-metal reduction gear design, providing high output torque.
Stepper control allows for accurate angle control and repeatable positioning.
Unidirectional ultra-high resolution, with rotational angle resolution ≤ 0.02 degrees.

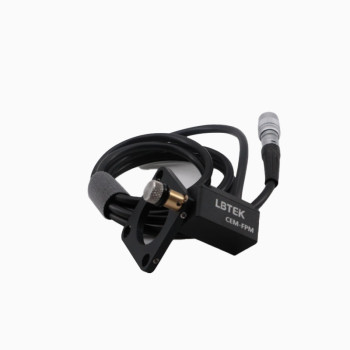

The LBTEK motorized filter mount is designed for continuous neutral density filters. It uses a 10 mm 4-wire 2-phase micro stepper motor with an ultra-compact size, where the motor's length and width are only 18 mm. This makes it ideal for use in space-constrained optical paths. The full-metal reduction gear design provides high output torque, and stepper control converts pulse signals into precise angular rotations. Even in open-loop mode, it ensures accurate angle control and repeatable positioning. With high resolution, the unidirectional rotational angle resolution can reach up to 0.015 degrees.
Note: Please connect the power supply to the controller before turning on the power switch, or turn off the power switch before disconnecting the power supply to avoid hot-swapping, which could damage the equipment.
