| Code | 665704 | Type | Electric Optical Shutter Controller | |
| Open/Close Time | 20ms-100000ms | Minimum Exposure Time | ≤10ms | |
| Sleep Time | 1-480 min/Never | Storage Temperature | -10 ℃ to 60 ℃ | |
| External Trigger Connector | SMA, TTL, 5V Voltage | Dimensions | 85.0 x 60.0 x 58.0mm | |
| Operating Mode | Manual Mode / Single Mode / Automatic Mode / Trigger Mode | Operating Voltage | 12V | |
| Number of Cycles | 1-2,000,000 times | Opening/Closing Time | 20ms-100000ms | |
| Interface Type | GX12-6PIN Male Connector | Power Interface | DC 3.5mm | |
| Backlight Brightness Level | 0-20 | Operating Temperature | 5 ℃ to 40 ℃ | |
| Communication Interface | USB TYPE-C | Weight | 195g | |
| Rated Current | 1.5A |
Local operation or remote control via USB or SMA
Complete host computer software control suite
Manual control and digital display for mode selection and on/off timing control

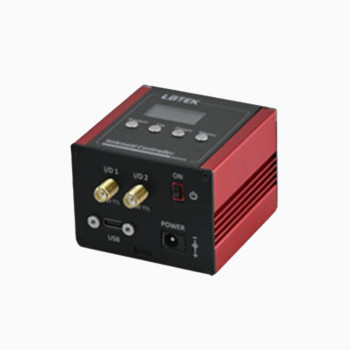

The MSC Electric Shutter Controller provided by LBTEK is a new, very compact single-channel controller designed to operate shutters driven by 12V solenoids and other similar devices. This mini controller is fully functional and features an embedded ARM processor to offer multiple flexible operating modes. The embedded software allows the unit to be used for manual control of solenoid devices (via panel buttons), automatic operation with ARM timing, or operation with external trigger signals in conjunction with third-party devices.
Note: Please connect the power supply to the controller before turning on the power switch, or turn off the power switch before disconnecting the power supply to avoid hot-swapping, which could damage the equipment.
