| Code | 665687 | Type | Three-Axis Adapter | |
| Tabletop Dimensions | 260.0 × 100.0mm | Material | 6061-T6 Aluminum Alloy | |
| Number of Axes | XZ Axis and XYZ Axis | Surface Treatment | Black Anodizing | |
| Weight | 1.5kg | Included Cylindrical Pin Specifications | Diameter 5 mm |
Enables the assembly of integrated controller electric linear stages in XZ and XYZ configurations
Can be installed in left-hand or right-hand systems
Includes positioning pins to ensure installation stability

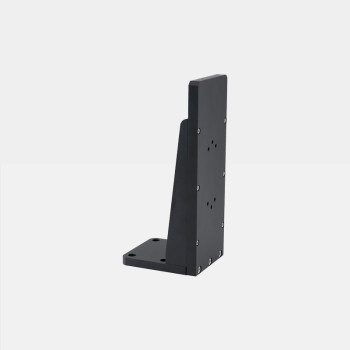

The LBTEK IC-LSS100-AB adapter component facilitates multi-axis assembly, enabling the construction of integrated controller electric linear stages in XZ two-axis and XYZ three-axis configurations. The adapter component is reinforced with ribs for overall stability. The mounting surface features pinning holes, and the included 5 mm diameter positioning pins ensure positional accuracy. The assembly is completed by securing the components with the included M6 screws into the mounting holes, allowing for quick and accurate installation. The adapter component is compatible with both left-hand and right-hand system installations.
