| Code | 665685 | Type | Three-Axis Adapter |
|
| Center-to-Center Distance of Mounting Holes | 50mm | Material | 6061-T6 Aluminum Alloy | |
| External Dimensions | 20.0 × 65.0 × 65.0mm | Mounting Hole Specifications | M6 Threaded Hole / M6 Countersunk Hole | |
| Surface Treatment | Natural Anodizing | Included Screws |
M6 Cylinder Head Hexagon Socket Screw and Cylindrical Pin Ø5*10 |
Material: Stainless Steel or Aluminum Alloy
Surface Treatment: Passivation or Natural Anodizing
Mounting Hole Specifications: M6 Threaded Hole, M6 Countersunk Hole

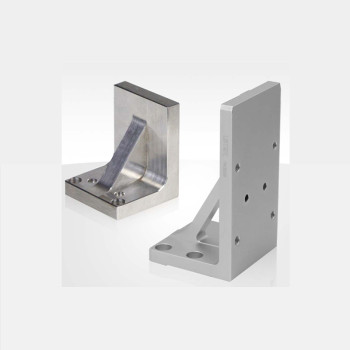

The 65 mm Right-Angle Three-Axis Adapter Plate provided by LBTEK features 4 M6 threaded holes and 4 M6 countersunk mounting holes. It is suitable for EM-LSS65-50C1, EM-LSS65-30C1, and EM-LSS65-13C1 electric linear stages. This adapter plate is commonly used for vertically mounting two linear stages. An XY-axis electric linear stage and a single-axis electric linear stage can be combined into an XYZ-axis linear stage using the right-angle adapter plate; two single-axis electric linear stages can also be assembled into an XZ-axis linear stage using the right-angle adapter plate.
