| Coad | 665661 | Type | Multi-Mode Fiber Patch Cable | |
| Fiber Length（m） | 5.0 | Wavelength(nm) | 300 - 2400 | |
| Connector Type | SMA | Fiber Model | fiberguide APC800 | |
| Cladding Material | Fluorine-Doped Resin Material | Cladding Diameter | 880μm | |
| Tube Diameter | - | Operating Temperature | -10℃-70℃ | |
| Storage Temperature | - | Test Wavelength | - | |
| Cutoff Wavelength | - | Numerical Aperture(NA) | 0.37 | |
| Maximum Optical Power | - | Maximum Insertion Loss | - | |
| Typical Insertion Loss | - | Minimum Return Loss | - | |
| Loose Tube Type | Stainless Steel Cable | Loose Tube Diameter | 6.0mm | |
| Mode Field Diameter | - | Coating Diameter | 1200μm | |
| Core Material | Low-Hydroxy Quartz Material | Core Diameter | 800μm | |
| Extinction Ratio | - | Maximum Tension | - |

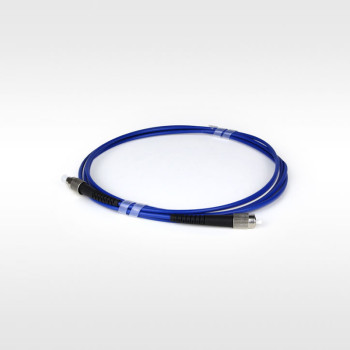

LBTEK Multi-Mode Fiber Patch Cables feature excellent coupling, high transmission rate, and good fatigue resistance. The multi-mode fiber patch cables offered by LBTEK use step-index fiber, with wavelength ranges of 200 nm to 1200 nm and 300 nm to 2400 nm available. Currently, there are two connector types to choose from: FC/PC and SMA. Based on the core diameter of the fiber, the standard loose tube is available in Ø3 mm blue-sheathed stainless steel cable and Ø6 mm stainless steel cable. For other custom requirements, please contact us.
LBTEK Multi-Mode Fiber Patch Cables are ideal for applications in solid-state lasers and spectrometers, offering excellent coupling, high transmission rate, and good fatigue resistance. The multi-mode fiber patch cables with SMA connectors are available in core diameters ranging from 50 μm to 1000 μm, with a loose tube of Ø3 mm blue-sheathed stainless steel cable.
