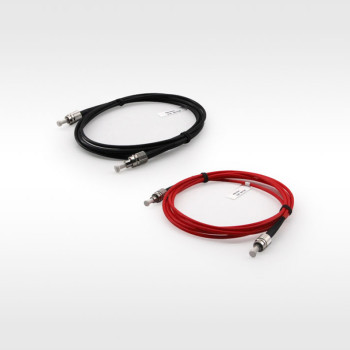

| Coad | 665589 | Type | Polarization-Maintaining Single-Mode Fiber Patch Cable | |
| Fiber Length（m） | 5.0 | Wavelength(nm) | 620 - 850 | |
| Connector Type | FC/APC | Fiber Model | PM-630-HP | |
| Cladding Material | - | Cladding Diameter | 125um | |
| Tube Diameter | - | Operating Temperature | 0℃-70℃ | |
| Storage Temperature | -40℃-85℃ | Test Wavelength | 1.2dB | |
| Cutoff Wavelength | 570 ± 50nm | Numerical Aperture(NA) | 0.12 | |
| Maximum Optical Power | - | Typical Insertion Loss | 1.0dB | |
| Minimum Return Loss | 50dB | Loose Tube Type | - | |
| Loose Tube Diameter | 3.0mm | Mode Field Diameter | 4.5um ± 0.5um@630nm | |
| Coating Diameter | 245um | Core Material | - | |
| Core Diameter | 3.5um | Extinction Ratio | ≥20dB | |
| Maximum Tension | 5N | |||
Traders City price 270.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
