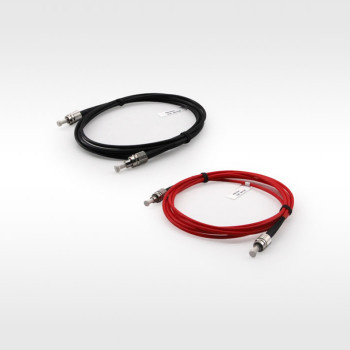

| Coad | 665553 | Type | Polarization-Maintaining Single-Mode Fiber Patch Cable | |
| Fiber Length（m） | 10.0 | Wavelength(nm) | 460 - 700 | |
| Connector Type | FC/PC | Fiber Model | PM-460-HP | |
| Cladding Material | - | Cladding Diameter | 125um | |
| Tube Diameter | - | Operating Temperature | 0℃-70℃ | |
| Storage Temperature | -40℃-85℃ | Test Wavelength | 2.5dB | |
| Cutoff Wavelength | 410nm ± 40nm | Numerical Aperture(NA) | 0.12 | |
| Maximum Optical Power | - | Typical Insertion Loss | 1.5dB | |
| Minimum Return Loss | 50dB | Loose Tube Type | - | |
| Loose Tube Diameter | 3.0mm | Mode Field Diameter | 3.3um ± 0.5um@515nm | |
| Coating Diameter | 245um | Core Material | - | |
| Core Diameter | 3.0um | Extinction Ratio | ≥18dB | |
| Maximum Tension | 5N | |||
Traders City price 629.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
