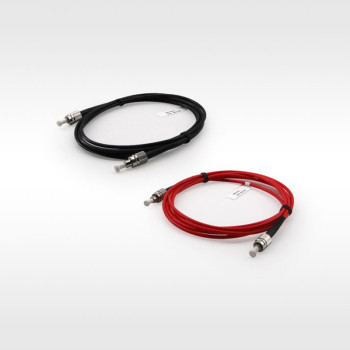

| Coad | 665549 | Type | Polarization-Maintaining Single-Mode Fiber Patch Cable | |
| Fiber Length（m） | 10.0 | Wavelength(nm) | 1270 - 1625 | |
| Connector Type | FC/PC | Fiber Model | PM1300 | |
| Cladding Material | - | Cladding Diameter | 125um | |
| Tube Diameter | - | Operating Temperature | 0℃-70℃ | |
| Storage Temperature | -40℃-85℃ | Test Wavelength | 0.5dB | |
| Cutoff Wavelength | 1200nm ± 70nm | Numerical Aperture(NA) | 0.12 | |
| Maximum Optical Power | - | Typical Insertion Loss | 0.3dB | |
| Minimum Return Loss | 50dB | Loose Tube Type | - | |
| Loose Tube Diameter | 3.0mm | Mode Field Diameter | 9.0um ± 0.5um@1300nm | |
| Coating Diameter | 245um | Core Material | - | |
| Core Diameter | 7.6um | Extinction Ratio | ≥22dB | |
| Maximum Tension | 5N | |||
Traders City price 269.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
