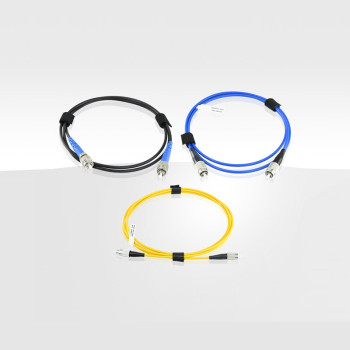

| Coad | 665536 | Type | Single-Mode Fiber Patch Cable | |
| Fiber Length（m） | 5.0 | Wavelength(nm) | 1300 - 1600 | |
| Connector Type | FC/PC | Fiber Model | SMF-28E | |
| Cladding Material | - | Cladding Diameter | 125.0μm ± 0.5μm | |
| Tube Diameter | - | Operating Temperature | -20°C~+70°C | |
| Storage Temperature | - | Test Wavelength | 0.3dB | |
| Cutoff Wavelength | ≤1260nm | Numerical Aperture(NA) | 0.14 | |
| Maximum Optical Power | 50mW | Typical Insertion Loss | - | |
| Minimum Return Loss | 50dB | Loose Tube Type | - | |
| Loose Tube Diameter | - | Mode Field Diameter | 9.2μm ± 0.6μm@1310nm | |
| Coating Diameter | 245.0μm ± 15.0μm | Core Material | - | |
| Core Diameter | 8.5μm | Extinction Ratio | - | |
| Maximum Tension | - | |||
Traders City price 27.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
