| Coad | 665509 | Type | Single-Mode Fiber Patch Cable | |
| Fiber Length（m） | 5.0 | Wavelength(nm) | 400 - 550 | |
| Connector Type | FC/PC to FC/APC | Fiber Model | 405-HP | |
| Cladding Material | - | Cladding Diameter | 125.0um ± 1.0um | |
| Tube Diameter | - | Operating Temperature | -20°C ~+70°C | |
| Storage Temperature | - | Test Wavelength | - | |
| Cutoff Wavelength | 370nm ± 20nm | Numerical Aperture(NA) | 0.13 | |
| Maximum Optical Power | 50mW | Maximum Insertion Loss | 2.5dB | |
| Typical Insertion Loss | - | Minimum Return Loss | 50dB | |
| Loose Tube Type | - | Loose Tube Diameter | 3.0mm | |
| Mode Field Diameter | 3.5um ± 0.5um@515nm | Coating Diameter | 245.0um ± 15.0um | |
| Core Material | - | Core Diameter | 2.1um | |
| Extinction Ratio | - | Maximum Tension | - |

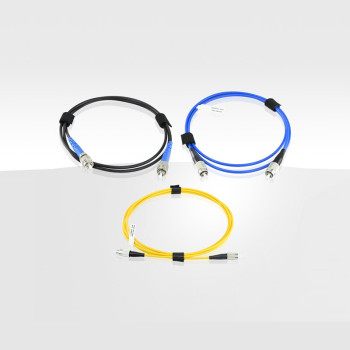

LBTEK Multi-Mode Fiber Patch Cables feature excellent coupling, high transmission rate, and good fatigue resistance. The multi-mode fiber patch cables offered by LBTEK use step-index fiber, with wavelength ranges of 200 nm - 1200 nm and 300 nm - 2400 nm available. Currently, there are two connector types to choose from: FC/PC and SMA. Based on the core diameter of the fiber, the standard loose tube is available in Ø3 mm blue-sheathed stainless steel cable and Ø6 mm stainless steel cable. For other custom requirements, please contact us.
LBTEK Multi-Mode Fiber Patch Cables are ideal for solid-state laser and spectrometer applications, offering excellent coupling, high transmission rate, and good fatigue resistance. The multi-mode fiber patch cables with FC/PC connectors are available in core diameters ranging from 50 μm to 1000 μm, with metal inserts used for diameters above 105 μm and ceramic inserts for smaller diameters. The loose tube is made of Ø3 mm blue-sheathed stainless steel cable. For other requirements, non-standard customization is available.
