| Code | 664157 | Type | Multimode Optical Fiber |
|
| Wavelength Range | 300–2400nm | Numerical Aperture (NA) | 0.22 |
| Operating Temperature | -190 to +350°C | Fiber Length | 50m |
|
| Core Diameter | 105μm | Cladding Diameter | 125μm | |
| Coating Diameter |
250μm |
Core Material |
Quartz Glass |
|
| Cladding Material |
Fluorine-doped Silica |
OH Content | low (> 1ppm) |
|
| Minimum Bend Radius |
≥6.25mm (short-term mechanical stress) ≥15.75mm (high laser power use) |
Attenuation @808nm | 8dB/km |
Traders City price 294.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Core Type: Circular Core
Fiber Length: 50 meters
Available in UV/IR Wavelength Bands

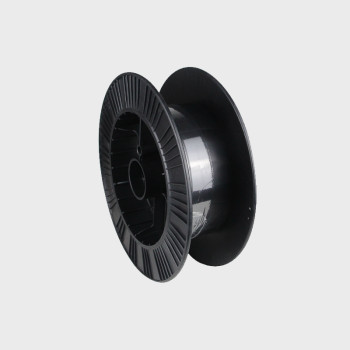

LBTEK offers circular core optical fibers in core diameters of 50 μm, 105 μm, and 200 μm, suitable for a wide range of applications. The fibers are available with both high and low hydroxyl ion (OH) concentrations. High OH is used for the UV to visible light range, while low OH is designed for the visible to near-infrared wavelength range. These optical fibers are ideal for applications in spectroscopy, medical diagnostics, medical technology, and laser transmission systems.
