| Code | 664147 | Type | Micrometer Head |
|
| Travel | 13mm | Outer Diameter of the Shaft Sleeve | 9.5mm | |
| Indexing | 10μm per division | Indexing Feature | Without Ratchet Force Limiting Mechanism |
|
| Positioning Accuracy | ± 2μm |
Traders City price 70.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

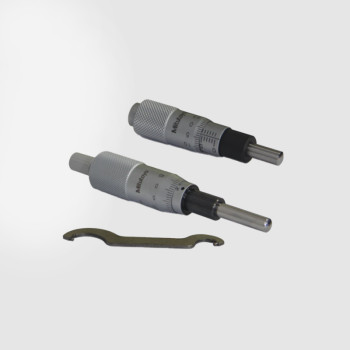

148-801, 150-801 Standard Micrometer Heads
13 mm, 25 mm travel
10 μm per division graduation
Positioning accuracy: ±2 μm
The micrometer head is mainly used in mechanical motion control products, such as the manual linear translation stages provided by LBTEK. LBTEK offers two specifications of micrometer heads from Mitutoyo: 148-801 and 150-801, corresponding to 13 mm and 25 mm travel, respectively. The micrometer heads feature graduations engraved on the outer sleeve with a precision of 10 μm per division, and a positioning accuracy of ±2 μm. The spherical end of the driver provides single-point contact, minimizing alignment errors.
