| Code | 664152 | Type | L-Shaped Right-Angle Adapter |
|
| Table Dimensions | 90.0 × 100.0mm | Table Bottom Countersunk Hole Specifications | M6 | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing |
|
| Weight | 0.4Kg |
Water Platform Surface Dimensions: 90 mm × 90 mm
Suitable for converting the Z-axis vertical mounting of the translation stage to horizontal lifting installation
With M6 threaded holes

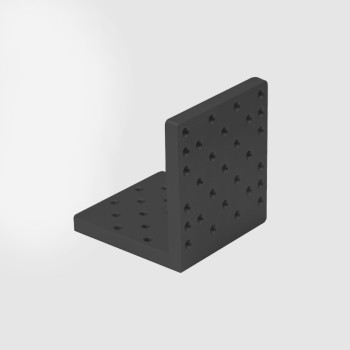

LBTEK 90mm Horizontal Lifting Right-Angle Adapter Plate is suitable for 25 mm travel manual linear stages and is used to convert the vertical mounting of the Z-axis on the translation stage into a horizontal lifting installation. The vertical face of the right-angle plate has 4 M6 threaded holes and 2 Ø5 mm pin holes. The L-shaped right-angle plate can be mounted on the translation stage with the Z-axis configuration using 4 M6 cylindrical head screws and 2 Ø5 mm pins (Note: before installing the right-angle plate, the plane adapter plate already mounted on the translation stage must be removed). During installation, the horizontal surface can be installed facing up or down as needed. The surface dimensions of the right-angle plate are 90 mm × 90 mm, and the surface has 29 M6 threaded holes (with a hole pitch of 12.5 mm/25 mm).
