| Code | 664150 | Type | 90 mm Right-Angle Adapter Plate |
|
| Dimensions | 90.0 × 90.0mm | Threaded Hole Specifications | M6 | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing |
Traders City price 83.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Can build XZ and XYZ axis translation stages
For vertical mounting
Dimensions: 90 mm × 90 mm
Orthogonality: ≤10 μm
With M6 threaded holes

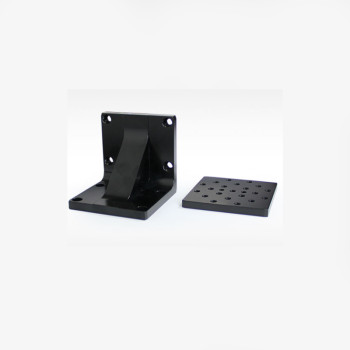

LBTEK's 90 mm Right-Angle Adapter Plate is suitable for 25 mm travel manual linear stages and is commonly used for vertical mounting of two stages. An XY axis linear translation stage and a single-axis linear translation stage can be combined into an XYZ axis linear translation stage using the right-angle adapter plate. Additionally, two single-axis linear translation stages can be assembled into an XZ axis linear translation stage using the right-angle adapter plate.
