| Code | 664147 | Type | 30 mm Coaxial System Rotary Adapter |
|
| Dimensions | 65.8 × 27.8mm | Bottom Countersunk Hole Specifications | M3 | |
| Material | 6061-T6 Aluminum Alloy | Surface Treatment | Black Anodizing |
|
| Included Screws | M3×8 mm Cylindrical Head Internal Hexagon Screw |
Used for 360° continuous rotation of 30 mm coaxial system
Pre-assembled 30 mm coaxial system component for connection to the rotating stage RP-1A
Single screw clamping mechanism
Includes 4 M3 cylindrical head internal hexagon screws

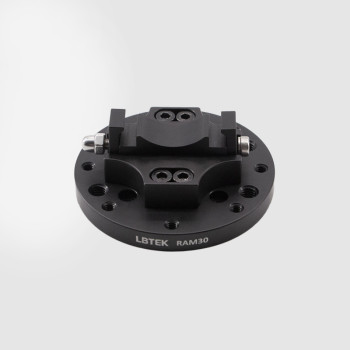

The LBTEK 30 mm Coaxial System Rotary Adapter is used to connect the 30 mm coaxial structure to the rotating stage RP-1A, allowing for precise alignment of the cage structure using the micrometer head on the rotating stage. The adapter is fixed to the RP-1A with 4 M3 cylindrical head internal hexagon screws. The single screw clamping mechanism can simultaneously clamp two cage rods of the 30 mm coaxial system. The pre-assembled coaxial system component can be easily mounted onto the adapter's clamping structure without the need to disassemble the coaxial system component. When purchasing the LBTEK 30 mm Coaxial System Rotary Adapter, M3 cylindrical head internal hexagon screws are included.
