| Code | 664146 | Type | Fiber Optic Probe | |
| Wavelength Range | 190-1100nm | Connector Type | SMA905 | |
| Fiber Length | 2m | Core Diameter | 400μm | |
| Numerical Aperture (NA) |
0.22± 0.02 |
Packaging Type | Blue PVC Multi-layer Kevlar Reinforced | |
| Probe Outer Shell Material |
Stainless Steel |
Probe Outer Shell Length |
76.2mm |
|
| Probe Outer Shell Diameter |
6.35mm |
Probe Fiber Bundle |
1 Reading Fiber & 6 Illumination Fibers |
|
| Operating Temperature |
-20°C to 85°C |
Traders City price 879.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Connector Type: SMA905
Packaging: Multi-layer Metal Armored
Compatible with: LBFS-TA1 Sampling Stand

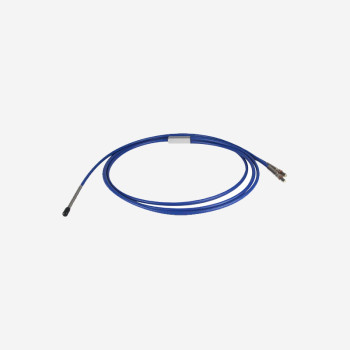

The reflection optical fiber probe provided by LBTEK can be used with a fiber optic spectrometer for reflectance measurements of solid and powder samples. The reflection fiber probe is configured in a Y-type, with two fibers sharing a common end (7-core probe) for measuring the sample. The other two ends form separate measurement branches: one 6-core port connects to the light source for coupling the illumination light, while the 1-core port connects to the spectrometer for coupling the reflected light signal.
LBTEK's reflection optical fiber probe is compatible with the LBFS-TA1 reflectance measurement stand.
