| Code | 664144 | Type | Fiber Optic Probe | |
| Wavelength Range | 200 - 1200nm | Connector Type | SMA905 | |
| Fiber Length | 2m | Core Diameter | 400μm | |
| Numerical Aperture (NA) |
0.22 |
Packaging Type | Silicone Buffer Packaging + Nylon Coating |
Wavelength Range: 250–1100 nm
Connector Type: Standard SMA905
Core Material: High Purity Imported Quartz Fiber
LBTEK offers large core diameter optical fibers specifically designed for optical testing scenarios such as UV radiation measurement, transmission and reflection measurement, water quality and gas absorption measurement, and spectral transmission testing.

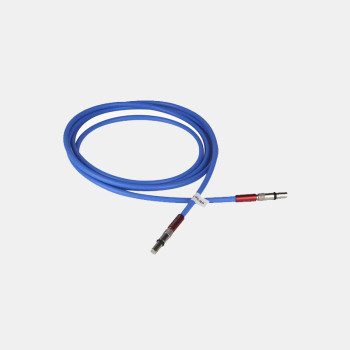

The fiber probe for LBTEK's large core optical fiber is a single-path fiber probe, using high-purity imported quartz fiber. The fiber type is multimode with a numerical aperture (NA) of 0.22. The working wavelength range spans from 250 to 1100 nm, with a core diameter of 400 μm. The fiber is encapsulated in GS engineering-grade silicone, and the protective jacket has a diameter of 5.0 mm.
