| Code | 664141 | Type | Fiber Optic Probe | |
| Wavelength Range | 185 - 1100nm | Connector Type | SMA905 | |
| Fiber Length | 1m | Core Diameter | 200μm | |
| Probe Fiber Bundle |
1 Reading Fiber & 6 Illumination Fibers |
Optical Path Adjustment Range | 1–10mm | |
| Probe Outer Diameter |
6.35mm |
Probe Outer Shell Length | 140–160mm | |
| Jacket Type |
PVC Multi-layer Kevlar Reinforced |
Probe Outer Shell Material | 304 Stainless Steel | |
| Maximum Pressure Resistance |
10 bar @ 25 ºC at probe end |
Operating Temperature | -30 ºC to 100 ºC |
Wavelength Range: 185–1100 nm
Connector Type: Standard SMA905
Core Material: German-imported Quartz Fiber

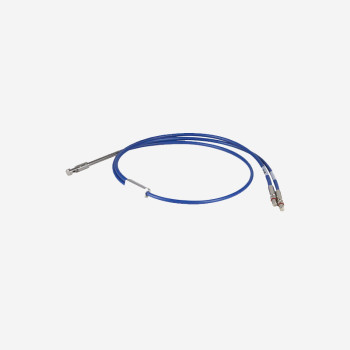

The LBTEK immersion Y-type quartz optical fiber is designed for use with fiber optic spectrometers for measuring absorbance and transmittance in solutions. The stainless steel probe, included with the fiber, is particularly suitable for embedding into industrial liquid flows for real-time sample monitoring.
The Y-type configuration consists of two fibers with a common end (7-core probe) used for measuring the sample. The probe's outer diameter is 6.35 mm, and its optical path length can be adjusted by the user within the range of 1 mm to 10 mm. The fiber bundle is split into two parts at the metallic section of the probe: one 6-core port connects to the light source for coupling the illumination light, while the 1-core port connects to the spectrometer for coupling the reflected light signal.
LBTEK's immersion fiber optic probe is compatible with the LBFS-TA1 reflectance measurement stand.
