| Code | 664087 | Type | USB HID Joystick Controller |
|
| Number of Axes | 3-Axis | Dimensions | 169.3 × 231.6 × 117.4mm | |
| Material | ABS | Surface Treatment | Sandblasting / Silkscreen Printing |
|
| Communication Interface |
Type-c |
High-reliability joystick compliant with USB HID protocol
Joystick controller supports 3-axis control
Speed adjustment knob for switching between different operating speeds
Supports high-precision movement
Supports emergency stop and reset functions
Ergonomically designed

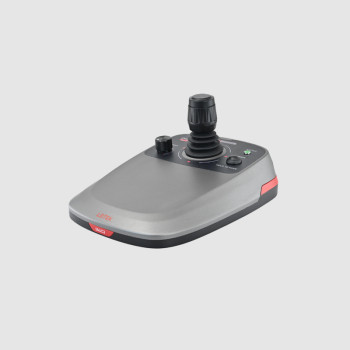

The EMJC3 Joystick Controller provided by LBTEK is designed to be used in conjunction with our EM-CS series stepper motor stage controllers. It is primarily used to control the XYZ three axes, with the default X-axis controlling left and right movements, the Y-axis controlling up and down movements, and the Z-axis controlling clockwise or counterclockwise rotation. It integrates speed adjustment, stop, and reset functions, and supports emergency stop to return to the zero position. After the EM-CS series stage controller automatically recognizes the default parameters of the stage, simply inserting the joystick allows immediate use, without the need to connect to a PC for any setup. It is convenient and quick. A 1.5-meter USB 3.1 standard Type-A to Type-C data cable is included for connecting the joystick controller to the stage controller. When the stage controller is connected to a PC, the controller software has the function to disable the joystick while working to prevent confusion caused by simultaneous multi-point control, ensuring safety and reliability.
