| Code | 664081 | Type | 5-Phase 1-Axis Controller |
|
| Number of Axes | 3-Axis | Motor Type | 5-phase stepper motor | |
| Bidirectional Trigger Interface | SMA | Dimensions | 250.0 × 134.0 × 264.0mm |
|
| Material | 5052 Aluminum Alloy | Motor Control Interface |
HDB 15 |
|
| Power Supply | AC 220V | Surface Treatment | Sandblasting / Silkscreen Printing |
|
| Communication Protocol |
USB2.0 FS |
Communication Interface |
Type-B |
Controls 5-phase stepper motor stages
1-axis, 2-axis, and 3-axis controllers available
Supports joystick control
Comprehensive control software and secondary development kit
Adds stage auto-identification function

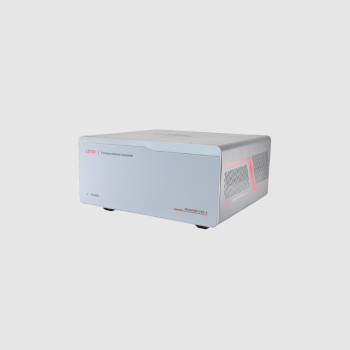

The 5-phase stepper motor stage controller provided by LBTEK is used to control stages driven by 5-phase stepper motors. The controller is available in 1-axis, 2-axis, and 3-axis versions. Users can choose the appropriate controller based on the number of motion axes in their system. The HDB15 interface on the rear of the controller is used to connect to the stage and supports automatic stage identification. Each axis has a set of SMA interfaces for input and output signal connections. The USB Type-B interface is used to connect to a computer without requiring a driver. The controller software provided by LBTEK not only includes multiple motion control modes to meet general motion control needs, but also adds a high-precision position compensation function. It supports secondary development in multiple languages, including C/C++, LabVIEW, C#, Python, and Linux.
