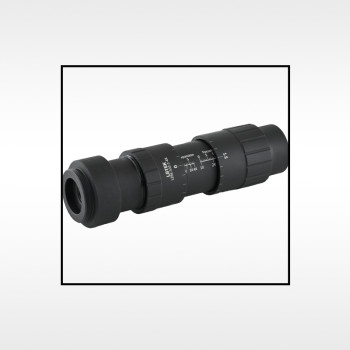

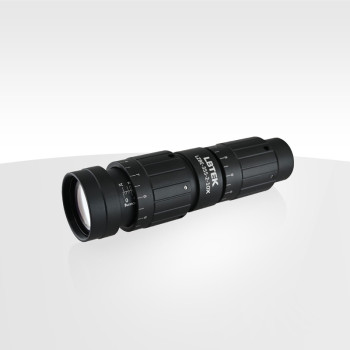

| Coad | 664057 | Type | Variable Magnification Laser Beam Expander | |
| Shell Input/Output Diameter（mm） | 42.00 | Shell Length（mm） | 170.30 | |
| Wavelength(nm) | 355 | Magnification(X) | 2 - 10 | |
| Material | UVFS | Housing Material | - | |
| Incident Clear Aperture | 9.3mm | Exit Clear Aperture | 33.0mm | |
| Incident and Exit Light Angle | - | Output Beam Spot Diameter | - | |
| Maximum Incident Beam Spot Diameter | 2.2mm - 6.0mm | Thread Size | - | |
| Thread Adjustable Distance | - | Spot Size at Diffraction Limit (a) | - | |
| Focusing Distance | - | Collimation | - | |
| Transmittance | ≥96% | Surface Quality | - | |
| Transmission Wavefront Deviation | - | Laser Damage Threshold | 2.5J/cm²(355nm,10nsPulse,10Hz);1.0MW/cm² | |
| System Damage Threshold | 0.25J/cm²(355nm,10nsPulse,10Hz);0.1MW/cm² | Coating Specifications | - |
Traders City price 580.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
