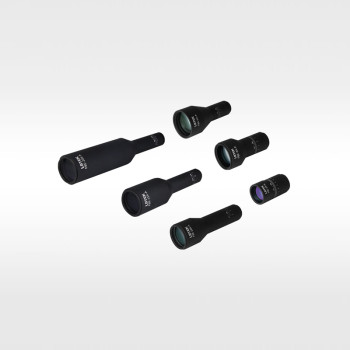

| Coad | 664052 | Type | Galilean Apochromatic Fixed Magnification Beam Expander | |
| Shell Input/Output Diameter（mm） | 30.5 / 45.0 | Shell Length（mm） | 138.50 | |
| Wavelength(nm) | 1100 - 1650 | Magnification(X) | 10 | |
| Material | - | Housing Material | - | |
| Incident Clear Aperture | 7.0mm | Exit Clear Aperture | 36.5mm | |
| Incident and Exit Light Angle | - | Output Beam Spot Diameter | 3.0mm | |
| Maximum Incident Beam Spot Diameter | - | Thread Size | SM1 External Thread / M43 External Thread | |
| Thread Adjustable Distance | ±3.0mm | Spot Size at Diffraction Limit (a) | 3.0mm | |
| Focusing Distance | ±5.5m | Collimation | - | |
| Transmittance | ≥96%@1064nm；≥97%@1310nm；≥97%@1550nm | Surface Quality | - | |
| Transmission Wavefront Deviation | - | Laser Damage Threshold | 3J/cm²(1542nm，10ns，1Hz，Ø268µm) | |
| System Damage Threshold | - | Coating Specifications | Ravg<0.5%@1100-1650nm |
Traders City price 623.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
