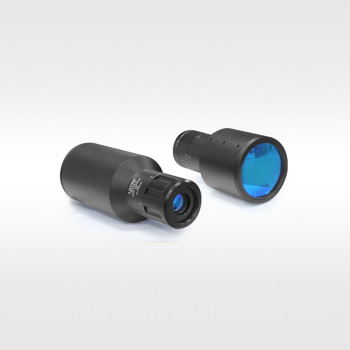

| Coad | 664017 | Type | Fixed Magnification Beam Compressor | |
| Shell Input/Output Diameter（mm） | 74.0 / 13.0 | Shell Length（mm） | 219.60 | |
| Wavelength(nm) | 1030 - 1400 | Magnification(X) | 8 | |
| Material | UVFS | Housing Material | 6061-T6 | |
| Incident Clear Aperture | - | Exit Clear Aperture | - | |
| Incident and Exit Light Angle | - | Output Beam Spot Diameter | - | |
| Maximum Incident Beam Spot Diameter | 45.0mm | Thread Size | - | |
| Thread Adjustable Distance | - | Spot Size at Diffraction Limit (a) | - | |
| Focusing Distance | - | Collimation | <0.5mrad@1064nm | |
| Transmittance | T>97%@1030nm-1400nm | Surface Quality | 40-20 | |
| Transmission Wavefront Deviation | λ/4@633nm | Laser Damage Threshold | - | |
| System Damage Threshold | - | Coating Specifications | Ravg<0.5%@1030nm-1400nm（S1） |
Traders City price 1189.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
