| Code | 664009 | Type | Fiber Optic Accessories |
|
| Wavelength Range | 200–2500nm | Reflectance | >93% (200–2500nm), ≥98% (650–1800nm) |
| Material | PTFE | White Reference Diameter | 30mm | |
| Housing Diameter |
38mm |
Housing Thickness |
11.5mm |
|
| Weight |
27g |
Wavelength Range: 200–2500 nm
Reflectance: >93% across the full working wavelength range
Material: High-quality imported PTFE
The diffuse reflectance reference plate provided by LBTEK is highly versatile and can be used in conjunction with a fiber optic spectrometer and light source to form a system for measuring the reflectance of various samples. It is suitable for determining the surface reflectance of rough materials such as ceramics, frosted glass, and plastics.

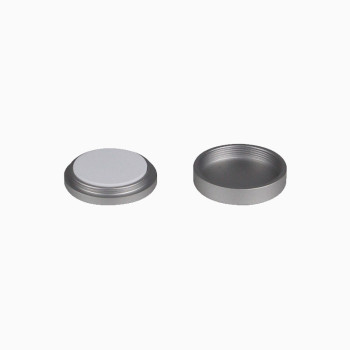

The LBSTD-WS is a standard diffuse reflectance reference target designed for reflectance measurements. Made from high-quality imported PTFE material, it offers reflectance greater than 93% across a wide spectral range from UV to NIR (200–2500 nm), making it an essential accessory for spectral measurements.
The reference plate is housed in an anodized aluminum case, which provides excellent waterproofing and enhanced stability.
