| Code | 664008 | Type | Fiber Optic Accessories |
|
| Optical Element Material | UV fused silica | Wavelength Range | 185–2500nm |
| Output Beam Diameter | 5mm | Connector Type | SMA905 | |
| Focal Length |
10mm |
Compatible Fiber NA |
0.22–0.37 |
|
| Divergence Angle |
<2° |
Housing Material | Anodized aluminum alloy | |
| Operating Temperature |
-20 to 150 °C (non-condensing) |
Traders City price 112.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Wavelength Range: 185–2500 nm
Connector Type: Standard SMA905
Equipped with UV fused silica lens

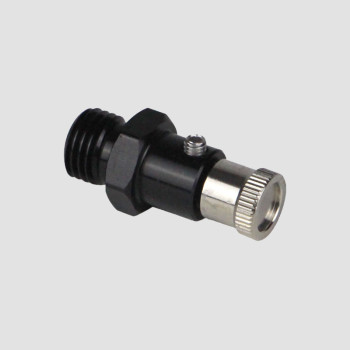

The fiber collimation lens provided by LBTEK enables collimated beam output. It uses a UV fused silica lens with a focal length of 10 mm and operates over a wavelength range of 185–2500 nm. It is suitable for optical fibers with a standard SMA905 connector.
After connecting the fiber, the distance between the fiber end face and the lens can be adjusted using a set screw, with a maximum adjustment travel of 5 mm. After adjustment, the divergence angle of the output beam does not exceed 2°.
