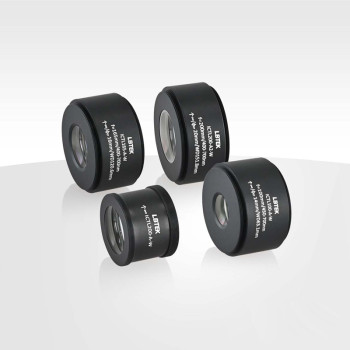

| Coad | 663997 | Type | Infinity-Corrected Tube Lens | |
| Wavelength(nm) | 350 - 1100 | Focal Length(mm) | 200 | |
| Maximum Incident Beam Diameter(mm) | - | Magnification(X) | - | |
| Dimensions | 35.3mm（Length） | Thread Specification | M38 x 0.5 External Thread | |
| Field of View | - | Weight | - | |
| Work Distance | 163.13mma | Clear Aperture | 26.0mm | |
| Image Plane Diameter | 24.0mm | Total Optical Path Length | 305.4mm | |
| Aperture Diameter | 22.0mm | Pupil Distance | 110.0mmb（Telecentric） | |
| Resolution | - | F-Theta Distortion | ＜0.2% | |
| Surface Quality | 60-40 | Design Wavelength | 350 - 1100 | |
| Coating Specifications | Ravg<1.2%，@350-1100nm，0°AOI | Lens Design | Apochromatic |
Traders City price 1813.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
