| Code | 663985 | Type | Height Adapter Base | |
| Mounting Hole Specifications / Quantity | M6 Mounting Slots / 4 Pieces | Height | 33mm | |
| Material |
6061-T6 Aluminum Alloy |
Surface Treatment | Black Anodized |
Material: 6061-T6 Aluminum Alloy
PYXYZ-A Height: 9.2 mm; PYXYZ-B Height: 33 mm
Both feature M6 mounting slots

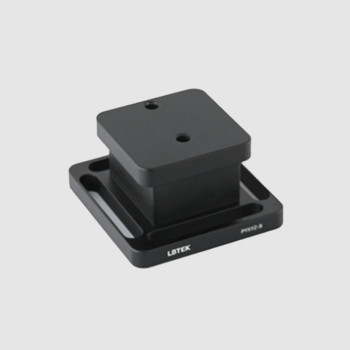

The LBTEK mounting base is designed to elevate and adapt PYXYZ five-axis translation stages. When used with the PYXYZ-A base, the overall assembly height reaches 36.5 mm; with the PYXYZ-B base, the total height becomes 60.3 mm. PYXYZ-A includes four central M6 threaded holes for attaching the PYXYZ stage. An 8 mm through hole at the center allows M4 screws to pass through and secure other M4-threaded mounts or optical posts on top of the PYXYZ stage. The sides of the base feature two M6 mounting slots for attachment to optical tables or breadboards. PYXYZ-B is equipped with two M6 threaded holes on the top surface for mounting the PYXYZ stage, and four M6 mounting slots on the sides for platform installation.
