| Coad | 663950 | Typical Applications | - | |
| Type | Low Dispersion Broadband Mirror | Clear Aperture | >90% | |
| Substrate | HPFS 7980 0F | Parallelism | - | |
| Diameter(mm) | 25.40 | Surface Quality S1 | 20-10 | |
| Diameter Tolerance | +0/-0.1mm | Surface Quality S2 | - | |
| Thickness(mm) | 6.00 | Surface Flatness | λ/10 | |
| Thickness Tolerance | +0/-0.1mm | Laser Damage Threshold | - | |
| Wavelength(nm) | 1350 - 2060 | GDD | Low GDD | |
| AOI(°) | 45 | Coating Type | Dielectric Coating | |
| Coating Specifications | R>99.5%@1350-2060nm | |||
Traders City price 107.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller

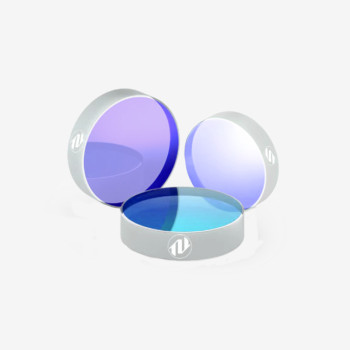

Low-dispersion broadband mirrors feature a flat reflective surface and can be used in a wide range of applications, including beam steering, interferometry, or as optical components in imaging systems.
Using this type of mirror addresses key concerns such as compatibility with different femtosecond laser systems, preservation of the laser beam’s temporal characteristics, and the ability to handle high peak intensities.
Notes for use: If the mirror surface becomes dirty, gently wipe it with lint-free lens tissue moistened with alcohol. Do not use rough cloths, ordinary paper, or water, as this may damage the surface.
