| Code | 663911 | Type | Electric Fiber Optic Cleaver |
|
| Fiber Type | Quartz Fiber / Glass Capillary (Single-Core Fiber) | Material | 9Cr18Mo Stainless Steel |
| Compatible Model | FCE40-250 | Type | Fixture |
Cleaving Angle: ≤0.4°
Cleaving Range: Cladding Diameter 40–1250 μm, Coating Diameter 80–3000 μm
Versatile Fixture Options – Compatible with Various Fiber Typess

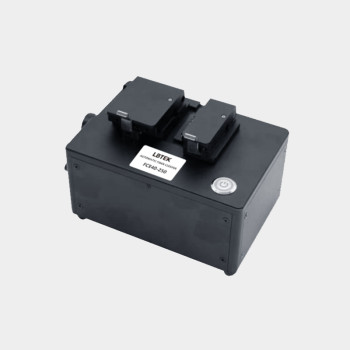

The LBTEK Electric Fiber Optic Cleaver is equipped with a wide selection of interchangeable fixtures, making it suitable for cleaving large-core fibers with cladding diameters ranging from 40 to 1250 μm and coating diameters from 80 to 3000 μm.
To perform a cleave, simply place the fiber into the corresponding fixture groove. The FCE80-1250 model features a touchscreen interface for flexible parameter adjustment.
The cleaver uses a diamond blade, offering exceptional hardness and wear resistance. It supports a wide variety of fiber types, and both blades and fixtures are replaceable.
Note: Please specify your fiber dimensions when placing an order. LBTEK will ship the cleaver with the appropriate fixture based on your fiber specifications. For special fixture requirements, please contact LBTEK technical support.
