| Code | 663906 | Type | Right-Angle Bracket | |
| Countersunk Hole Size | M4 | Threaded Hole Size | M4 | |
| Overall Dimensions | 72.1 × 25.0 × 17.0mm | Material | 6061-T6 Aluminum Alloy | |
| Surface Treatment | Black Anodizing |
Traders City price 34.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Mounts miniature dovetail translation stages to a 60 mm coaxial system
Center M4 countersunk hole and threaded hole
Secured via side M3 set screws

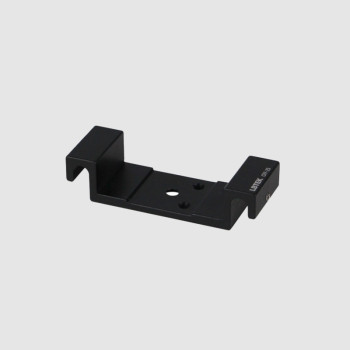

The LBTEK coaxial adapter for 60 mm systems is designed to mount miniature dovetail translation stages within a 60 mm coaxial framework. The stage can be directly attached using the central M4 countersunk hole, or mounted via the RAF-25 rotary adjustment mount, which connects through the central M4 threaded hole. Within the coaxial system, the adapter can slide along the support rod for position adjustment. Once in place, it can be securely fixed by tightening two M3 set screws on the side using a 1.5 mm hex wrench.
