| Code | 663904 | Type | Right-Angle Bracket | |
| Countersunk Hole Size | M4 | Threaded Hole Size | M4 | |
| Overall Dimensions | 25.5 × 25.0 × 33.5mm | Material | 6061-T6 Aluminum Alloy | |
| Surface Treatment | Black Anodizing |
Traders City price 32.00$ The different purchase price may be caused by the store's previous promotion activities. For details, please consult the seller
Vertical installation of two LS25-13C1 stages
Countersunk mounting holes: M4
Supports left- and right-handed configuration switching

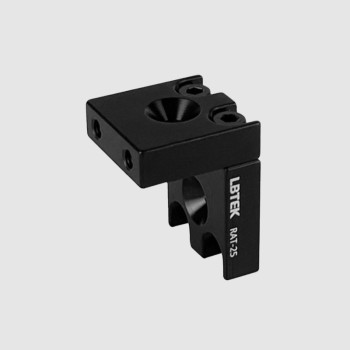

The LBTEK right-angle bracket allows vertical mounting of two miniature dovetail translation stages. Two single-axis stages can be assembled into an XZ or YZ dual-axis configuration, while one single-axis stage combined with a dual-axis stage enables an XYZ three-axis setup. All stages are mounted to the bracket using M4 screws. M4 threaded holes on the sides can be used for attaching optical posts or other opto-mechanical components. The bracket features a rotationally symmetric design, allowing easy switching between left- and right-handed coordinate systems.
